Replicate data with Airbyte

Neon's logical replication feature allows you to replicate data from your Neon Postgres database to external destinations.

Airbyte is an open-source data integration platform that moves data from a source to a destination system. Airbyte offers a large library of connectors for various data sources and destinations.

In this guide, you will learn how to define your Neon Postgres database as a data source in Airbyte so that you can stream data to one or more of Airbyte's supported destinations.

Prerequisites

• An Airbyte account
• A Neon account

Enable logical replication in Neon

To enable logical replication in Neon:

1. Select your project in the Neon Console.
2. On the Neon Dashboard, select Project settings.
3. Select Beta.
4. Click Enable to enable logical replication.

You can verify that logical replication is enabled by running the following query from the Neon SQL Editor:

SHOW wal_level;
 wal_level
-----------
 logical

Create a Postgres role for replication

It is recommended that you create a dedicated Postgres role for replicating data. The role must have the REPLICATION privilege. The default Postgres role created with your Neon project and roles created using the Neon Console, CLI, or API are granted membership in the neon_superuser role, which has the required REPLICATION privilege.

Grant schema access to your Postgres role

If your replication role does not own the schemas and tables you are replicating from, make sure to grant access. Run these commands for each schema:

GRANT USAGE ON SCHEMA <schema_name> TO <role_name>;
GRANT SELECT ON ALL TABLES IN SCHEMA <schema_name> TO <role_name>;
ALTER DEFAULT PRIVILEGES IN SCHEMA <schema_name> GRANT SELECT ON TABLES TO <role_name>;

Granting SELECT ON ALL TABLES IN SCHEMA instead of naming the specific tables avoids having to add privileges later if you add tables to your publication.

Create a replication slot

Airbyte requires a dedicated replication slot. Only one source should be configured to use this replication slot.

Airbyte uses the pgoutput plugin in Postgres for decoding WAL changes into a logical replication stream. To create a replication slot called airbyte_slot that uses the pgoutput plugin, run the following command on your database using your replication role:

SELECT pg_create_logical_replication_slot('airbyte_slot', 'pgoutput');

airbyte_slot is the name assigned to the replication slot. You will need to provide this name when you set up your Airbyte source.

Create a publication

Perform the following steps for each table you want to replicate data from:

1. Add the replication identity (the method of distinguishing between rows) for each table you want to replicate:

   ALTER TABLE tbl1 REPLICA IDENTITY DEFAULT;

   In rare cases, if your tables use data types that support TOAST or have very large field values, consider using REPLICA IDENTITY FULL instead:

   ALTER TABLE tbl1 REPLICA IDENTITY FULL;

2. Create the Postgres publication. Include all tables you want to replicate as part of the publication:

   CREATE PUBLICATION airbyte_publication FOR TABLE <tbl1, tbl2, tbl3>;

   The publication name is customizable. Refer to the Postgres docs if you need to add or remove tables from your publication.

Create a Postgres source in Airbyte

1. From your Airbyte Cloud account, select Sources from the left navigation bar, search for Postgres, and then create a new Postgres source.

2. Enter the connection details for your Neon database. You can get these details from your Neon connection string, which you'll find in the Connection Details widget on the Dashboard of your Neon project. For example, given a connection string like this:

   postgres://alex:AbC123dEf@ep-cool-darkness-123456.us-east-2.aws.neon.tech/dbname?sslmode=require

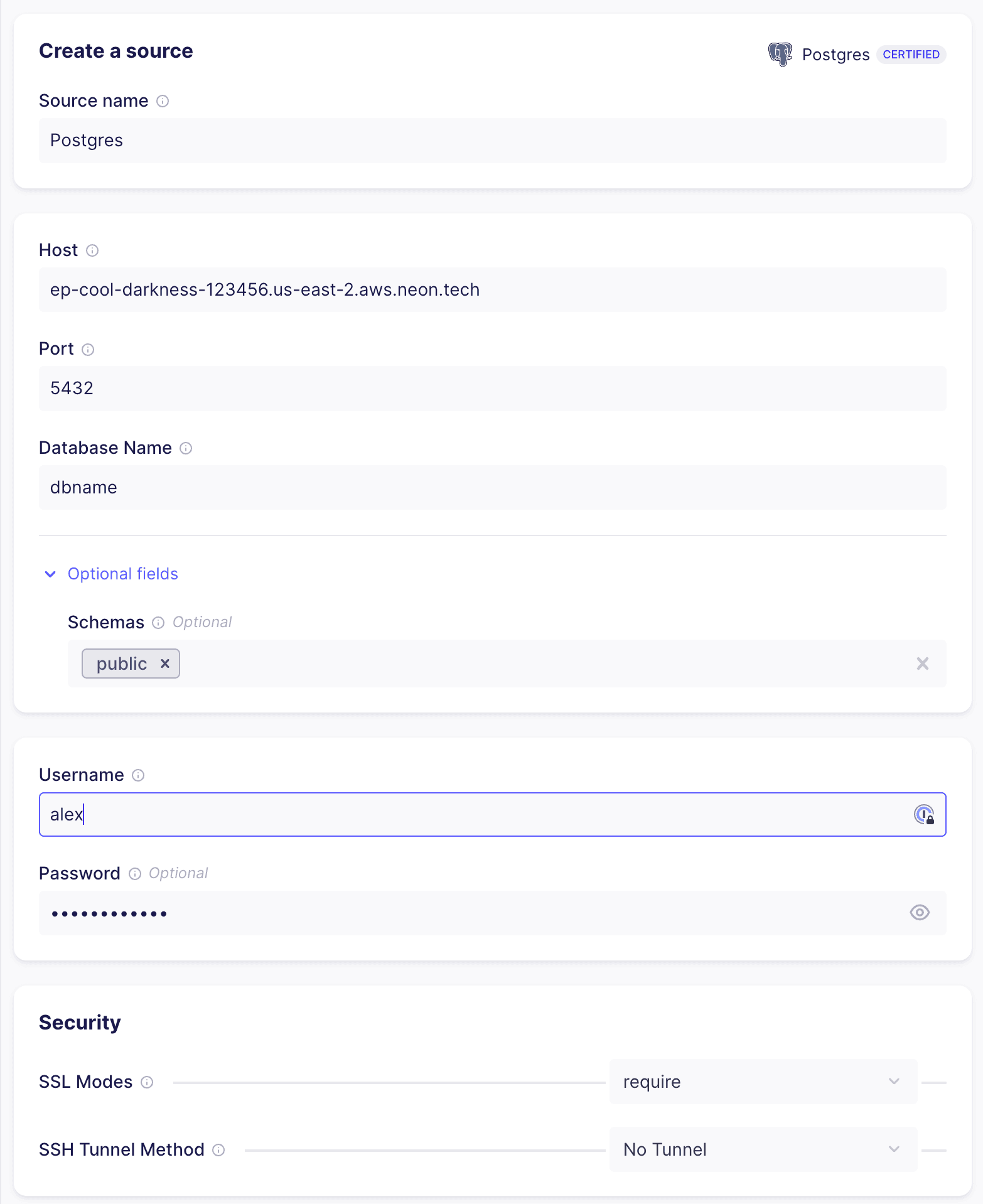

   Enter the details in the Airbyte Create a source dialog as shown below. Your values will differ.

   • Host: ep-cool-darkness-123456.us-east-2.aws.neon.tech
   • Port: 5432
   • Database Name: dbname
   • Username: alex
   • Password: AbC123dEf



3. Under Optional fields, list the schemas you want to sync. Schema names are case-sensitive, and multiple schemas may be specified. By default, public is the only selected schema.

4. Select an SSL mode. You will most frequently choose require or verify-ca. Both of these options always require encryption. The verify-ca mode requires a certificate. Refer to Connect securely for information about the location of certificate files you can use with Neon.

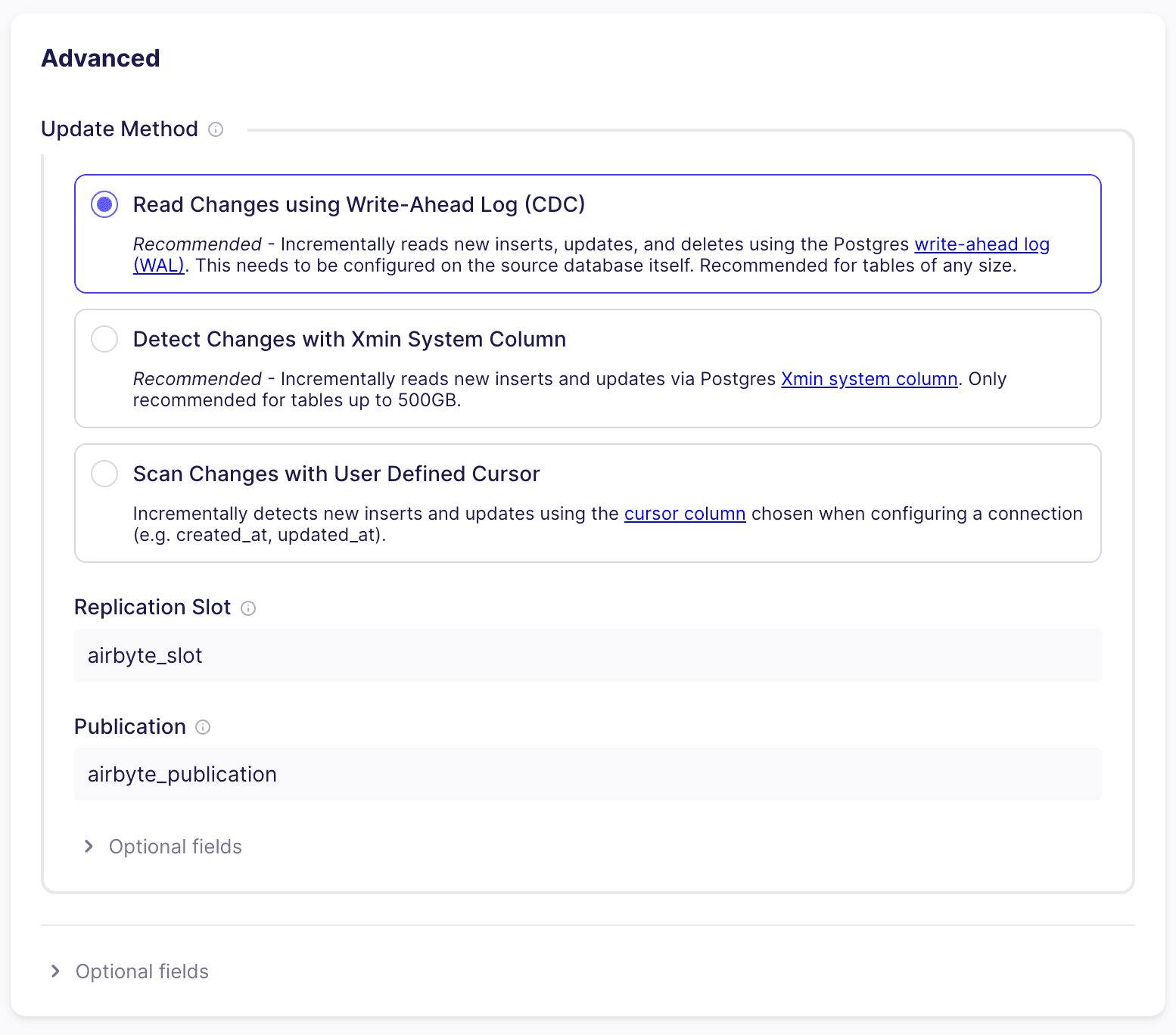

5. Under Advanced:

   • Select Logical Replication (CDC) from available replication methods.
   • In the Replication Slot field, enter the name of the replication slot you created previously: airbyte_slot.
   • In the Publication field, enter the name of the publication you created previously: airbyte_publication.

Allow inbound traffic

If you are on Airbyte Cloud, and you are using Neon's IP Allow feature to limit IP address that can connect to Neon, you will need to allow inbound traffic from Airbyte's IP addresses. You can find a list of IPs that need to be allowlisted in the Airbyte Security docs. For information about configuring allowed IPs in Neon, see Configure IP Allow.

Complete the source setup

To complete your source setup, click Set up source in the Airbyte UI. Airbyte will test the connection to your database. Once this succeeds, you've successfully configured an Airbyte Postgres source for your Neon database.

Configure a destination

To complete your data integration setup, you can now add one of Airbyte's many supported destinations, such as Snowflake, BigQuery, or Kafka, to name a few. After configuring a destination, you'll need to set up a connection between your Neon source database and your chosen destination. Refer to the Airbyte documentation for instructions:

• Add a destination
• Set up a connection
